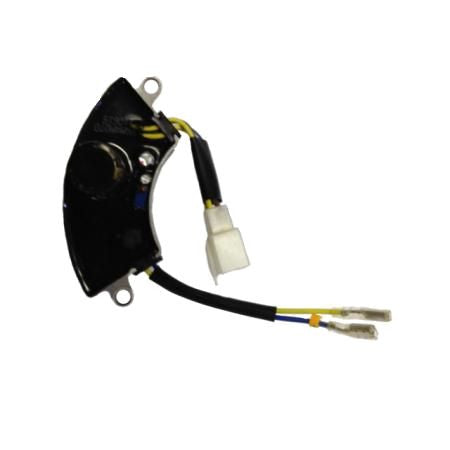

Honda E3500K1 E3500K2 Es3500K1A Es3500K2A Replacement Avr 31410-893-003 Assembly

3.0 - 4.5 AVR Replacement Generator

Includes: 1x AVR-3045HS1

Automatic Voltage Regulator

Honda

E3500,

E3500K1,

E3500K2,

ES3500,

ES3500K1A,

ES3500K2A

Compatible with:

31410-893-003

Special Note:

• The condenser assembly (capacitor) OEM AVR for Honda is installed separately using two lead wires. While our capacitor is built-in.
• Our AVR has the built-in self-protection feature, therefore no fuse is used.


• A higher output works great on a generator of low power output AVR; However, a low power output AVRwill notwork for higher power output generators.


• If the generator needs adjustment, simply a small bronze screw in a blue rubber part to reach preferred power output. (Turning clockwise for increasing, while counter-clockwise for decreasing voltage output).

Special Details

• Full-wave Built-in Rectification Bridge.
• Increased Voltage Output When Loading.
• Even Output Voltage With Negative Voltage.
• Protection from Short Circuit, Over Voltage and Over Current.
• Adjustable Output Range from 160V-260V For 240V Output.

Descriptions

• Ultimate Output: DC 90V 3.5A
• Frequency: 50-60Hz
• AC Voltage Output: 120V-240V
• UltimateTemperature: 130C - 266F
• Continued Working: 20 Hours
• Center Installation Distance: ABout 5.5 in.
