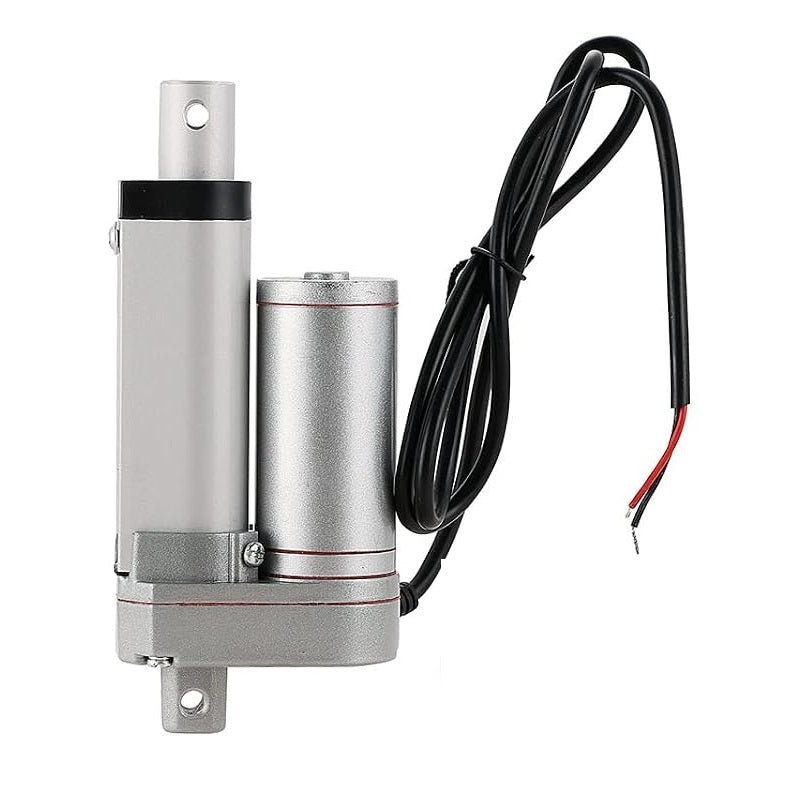

Linear Actuator 2" Stroke 225 Pound Max Lift 12 Volt DC Heavy Duty 2 inch

2" (2 Inch) Linear Actuator

Add reliable powered push-and-pull movement to your projects with our 12V DC electric linear actuator.

Designed for lifting, positioning, opening, closing, and adjustment applications, this compact actuator provides approximately 2 inches (50mm) of linear travel with a powerful 900N / 225lb load rating.

The built-in limit switches automatically stop the actuator when it reaches the end of its travel, helping prevent over-extension or retraction.

The aluminum housing and compact design make this actuator a great choice for automotive, RV, furniture, DIY, agricultural, and automation applications.

Includes:
1x 12V 2" Linear Actuator

Specifications & Features:
8 1/8" Extended Length
6 1/8"Compressed Length
[From center of Mounting Holes]
12 Volt
2" Extension.
225 Pound (102.3 Kg) Max Lift.
Speed: 12mm /second.
6mm Diameter Mounting holes
20mm Diameter Shaft
Built-in limit switches
Push/pull operation
Self-locking design helps hold position when power is removed
Aluminum alloy housing
IP54 protection against dust and water splashes
Low-noise operation
Compact design
