Linear Actuator with Brackets 2" Stroke 225 Pound Max Lift 12 Volt DC Heavy Duty

AE-Parts

$34.95 $44.00

Share:

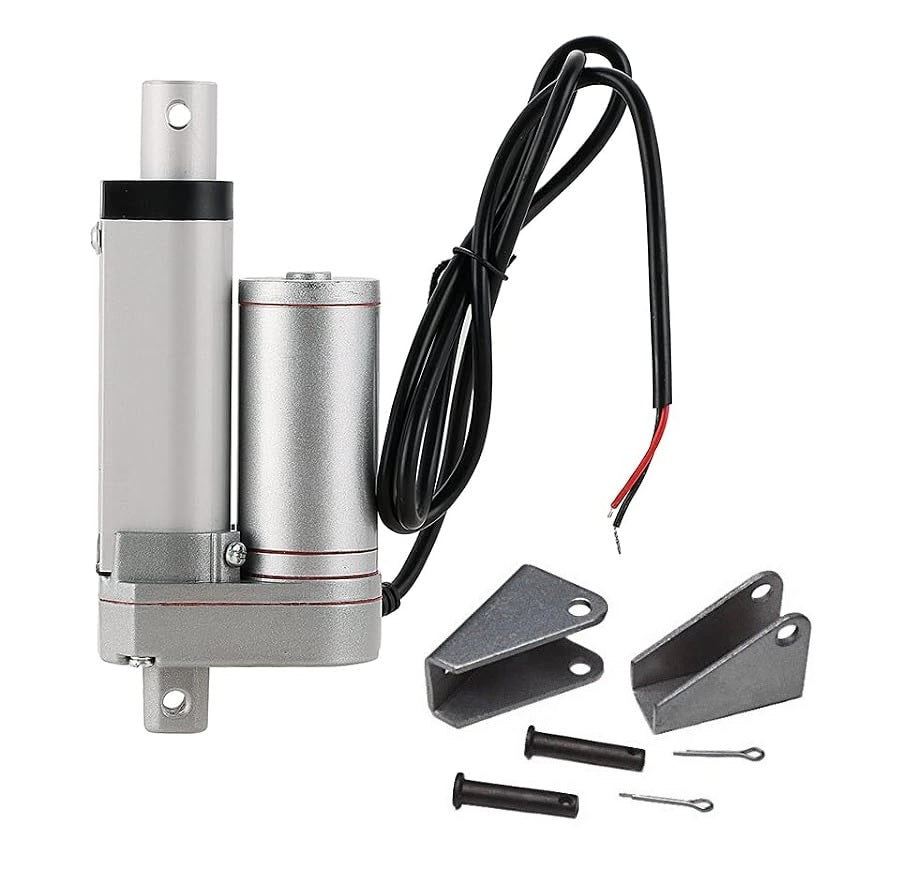

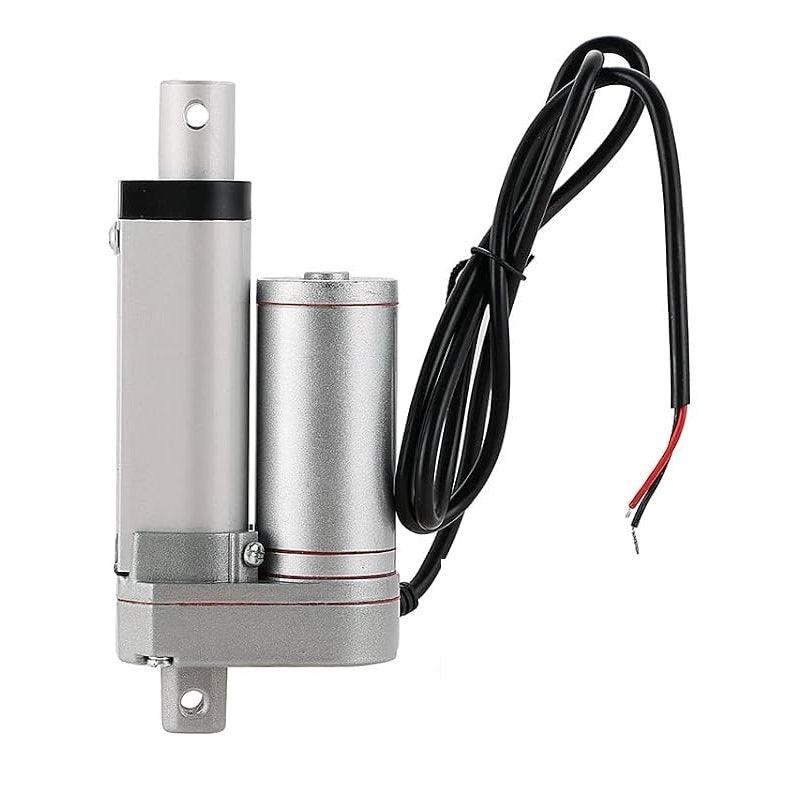

2" (2 inch) Linear Actuator with Mounting Brackets

8 1/8" Extended Length

6 1/8"Compressed Length

[From center of Mounting Holes]

Overall Height: 6 7/8" (174mm)

Width: 2 1/8" (74mm)

12 Volt

2" (2 inch) Extension.

225 Pound (102.3 Kg) Max Lift.

Speed: 12mm /second.

6mm Diameter Mounting holes

20mm Diameter Shaft

Wiring included, pre-installed.

Built-in clutch prevents over-extending and over-compressing.

2 mounting brackets, 2 pins, and 2 cotter pins included.
